l Frame material: Chromemoly steel
l Wall thickness: 3mm
l Thickness of rear axle: 40mm

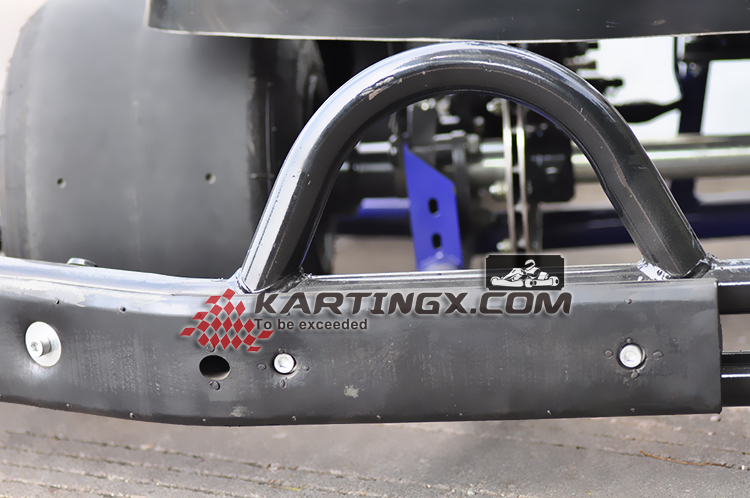

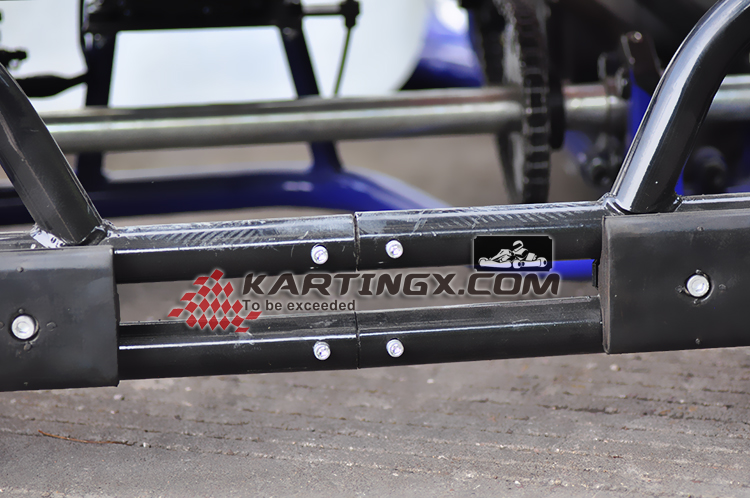

l Chassis Tubing: 32mm diameter
l Rear axle material: Steamless tube steel
l Type of hubs used: CNC Aluminum hubs
l 3mm Chromemoly steel professional for Racing Go Kart
l More strong and safty frame design

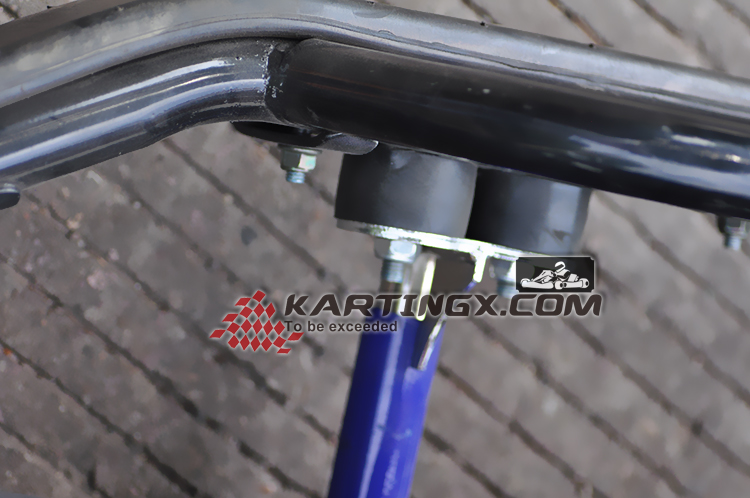

l We have update this model’s brake system as following showed:
With Upgrade beatle plastic set

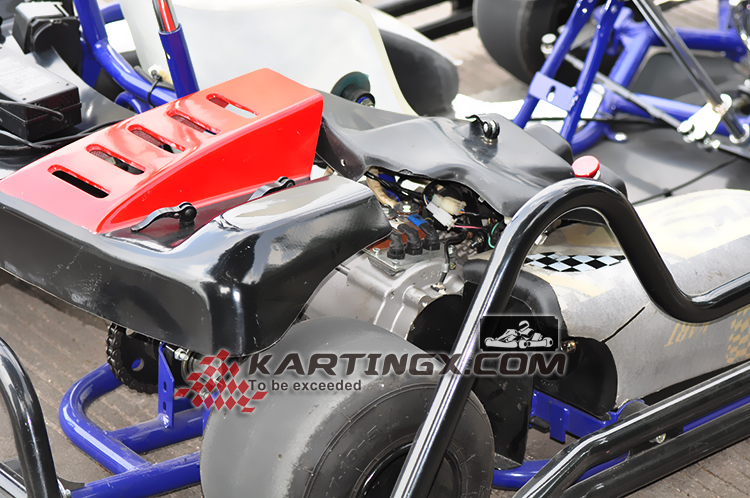

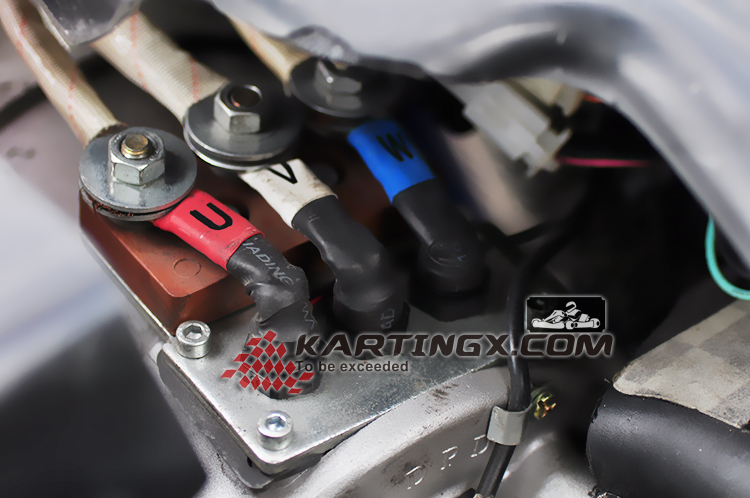

Motor: 3000W AC Motor
Battery: 60V 26.4Ah lithium battery
Charging time: 4hours
Product Size:1820x1060x600mm
Max Speed: 65KM/H
Max Load: 200KGS
Frame:Chromemoly steel

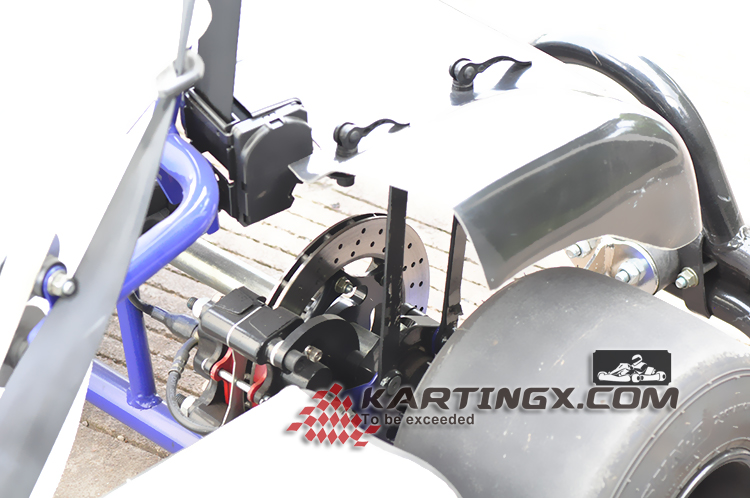

Brake Type: Hydraulic Brake
Frame material: Mild steel
Vehicle frame thickness: 3mm
Thickness of rear axle: 40mm
Chassis Tubing: 32mm diameter
Brake Distance:1.5m

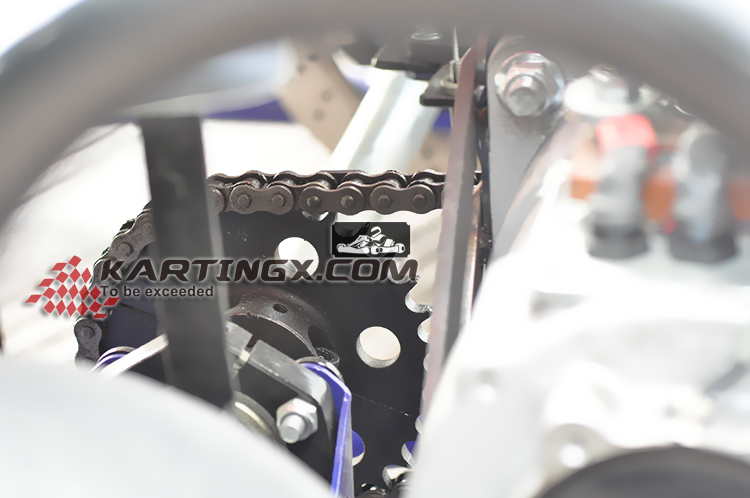

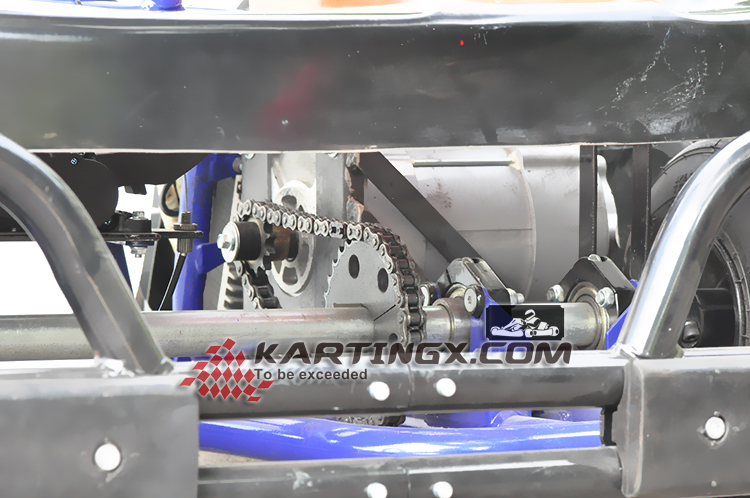

Transmission: Chain Driven
Bearings: Roller bearings
Min.ground clearance: 40mm
Max range:50KM
wheelbase: 1040mm
Wheel: Front:10X4.5-5; rear:11X7.1-5
Package: Carton Packing with steel frame
Net weight: 156KGS
Gross weight:175KGS
Carton size: 1705x1145x500mm/1pc
If send with full assemble, the out carton size is
196.5x144.5x50cm/1pc
Container:
24pcs/20ft,48pcs/40ft, 60pcs/40’HQ
